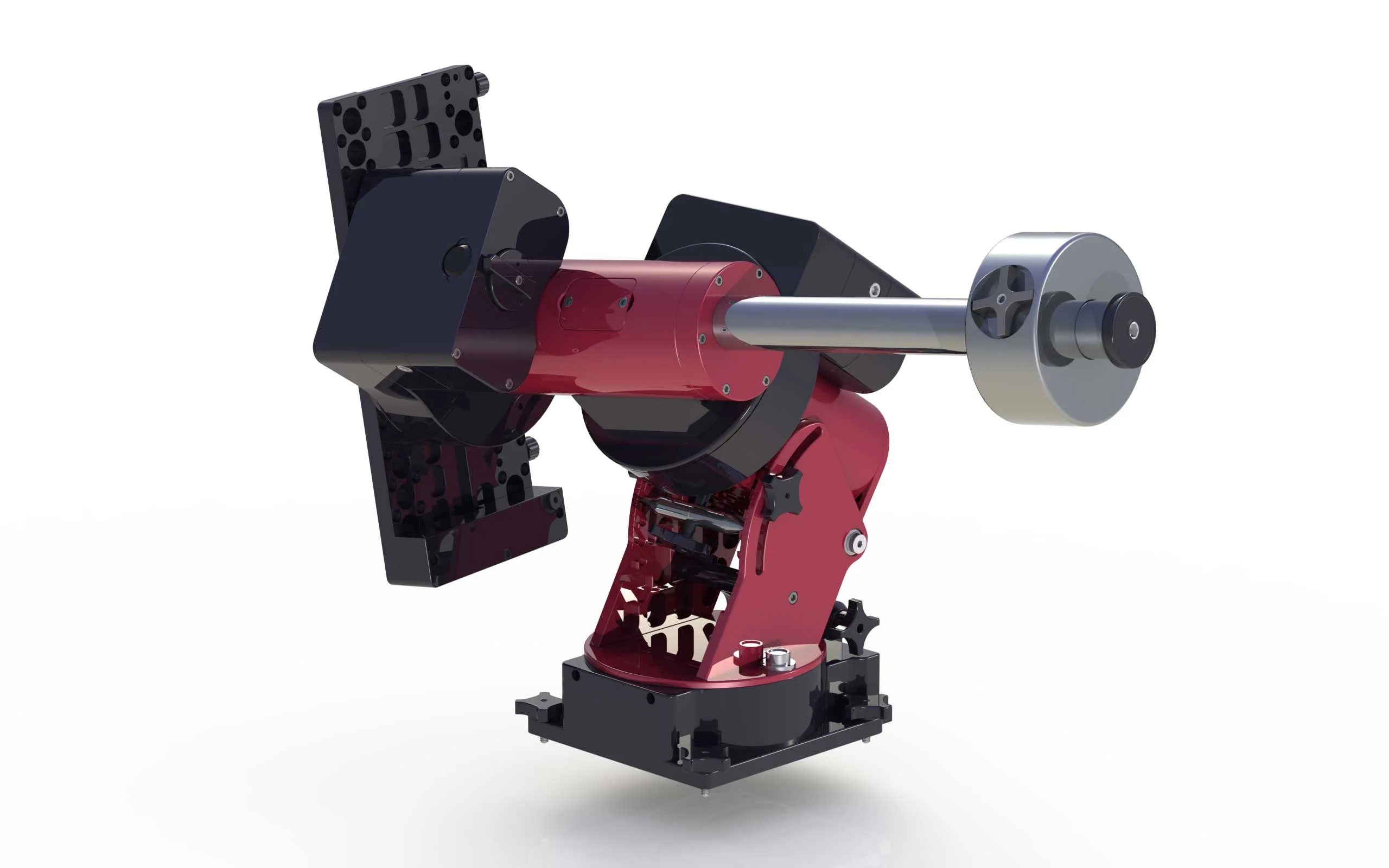

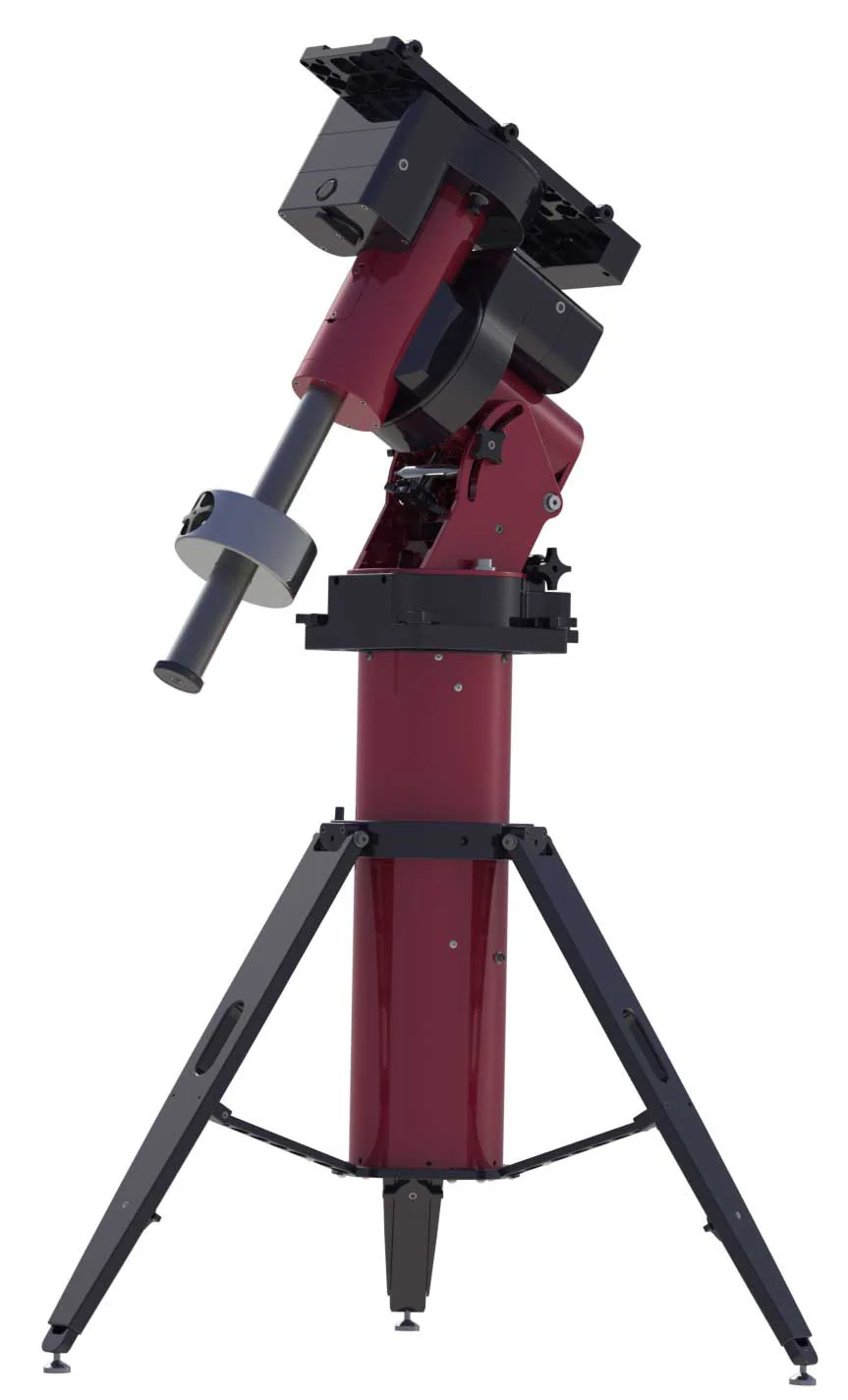

Software Bisque Paramount MyT Equatorial Mount

Software Bisque Paramount MyT Equatorial Mount weighs in at 34-pounds, and can easily carry 50-pounds in equipment while maintaining the accuracy and tracking precision to be expected from a Software Bisque mount. It boasts 7 arcseconds or less peak-to-peak periodic error - before PEC (Periodic Error Correction) has been applied by the onboard computer.



Bisque Paramount MyT EQ Mount Features

• Weighs a very portable 34-pounds for the mount head.
• Impressive 50-pounds weight capacity, not including counterweights. With counterweights, the total load capacity increases to 100-pounds (CW weight included in total).
• Fast, accurate, and stable, the MyT includes 11 cm (4.3-inches) right ascension and declination bearings, 6-degrees per second maximum slew speeds, and high-torque precision brushless DC servo motors.
• All aluminum precision machined body with signature red anodized finish.
• MKS 5000 motor control system.
• Research-grade brass RA gears with 7 arcseconds or less peak-to-peak periodic error - before PEC (Periodic Error Correction) has been applied by the onboard computer.
• Plenty of room for additional accessories and simple but effective cable management.
• Includes an integrated guider port, two USB ports, a 5V 1A max power supply port, one 12V 1A max power supply port, pulse focuser port, and a generic through the mount power supply cabling port.
• It also includes an integrated wedge for a latitude range of 0 to 64-degrees.
• Additional polar axis adjustment extends the effective range by plus or minus 7-degrees.

Optimized Design

The mount cable management helps keep your set up organized and tangle-free.

A rotating mount base allows for AZ adjustments to be made without affecting the mount's altitude.

Red lights provide a soft glow under the mount to allow for ease of adjustment at any moment. This light can be turned off as well as your viewing or imaging session gets underway.

A clutch-free worm block design maintains the mount's physical orientation to increase mount pointing and tracking accuracy while a mechanical switch on each axis will disengage the worm from the gear while still balancing the payload.

Software Included

TheSkyX Professional Edition is a full-featured planetarium style software that offers a beautiful interface for mount control. Camera Add On software allows for the camera, focuser, filter wheel, and SBIG adaptive optics control. TPoint software with SuperModel and ProTrack provides professional-level telescope pointing correction. All software included are multi-license allowing for installation on up to 6 machines and can be installed on either Mac or Windows operating systems.



• The Software Bisque MyT Mount delivers precision tracking with 7 arcseconds or less peak-to-peak periodic error - before PEC.
• 6-degrees per second maximum slew speeds.
• 50-pound weight capacity, while only weighing 34-pounds.
• Includes the SkyX Pro software so you can control your mount, camera, focuser, and other equipment through your PC.
• NOTE: Does not come with a tripod.

• Software Bisque Paramount MyT Robotic Mount.
• MYT Counterweight Shaft.
• 20-pound Counterweight.
• Counterweight Safety knob.
• Hand paddle.
• USB to USB min cable.
• hex key set.
• pier lock knobs.
• QuickStart guide.
• Paramount User Guide.
• USB thumb Drive (loaded with the SkyX Pro for Windows, Mac, Linux, and Raspberry Pi for easy download).
• Power Supply and Power Cable.
